Duo-Crimp No. 300
for stripping and crimping I working range 0,5 mm² - 6,0 mm²
Description
Stripping and crimping with just one tool I Stripping from 0.5 mm² to 6.0 mm² I Two crimping areas (0.5 - 2.5 mm² and 4.0 - 6.0 mm²) according to DIN 46228-2 I Integrated, well-accessible side cutter up to 6 mm²

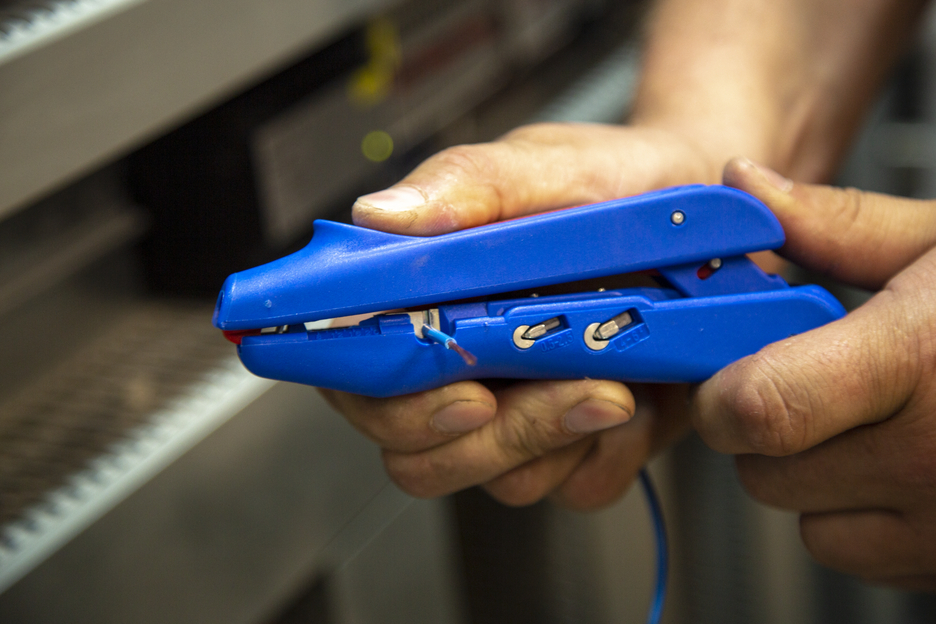

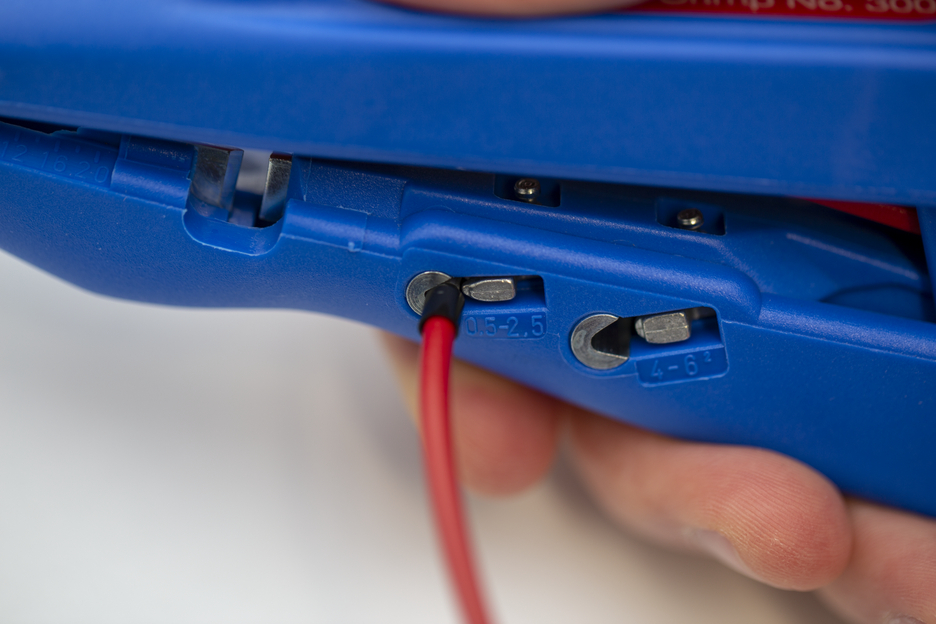

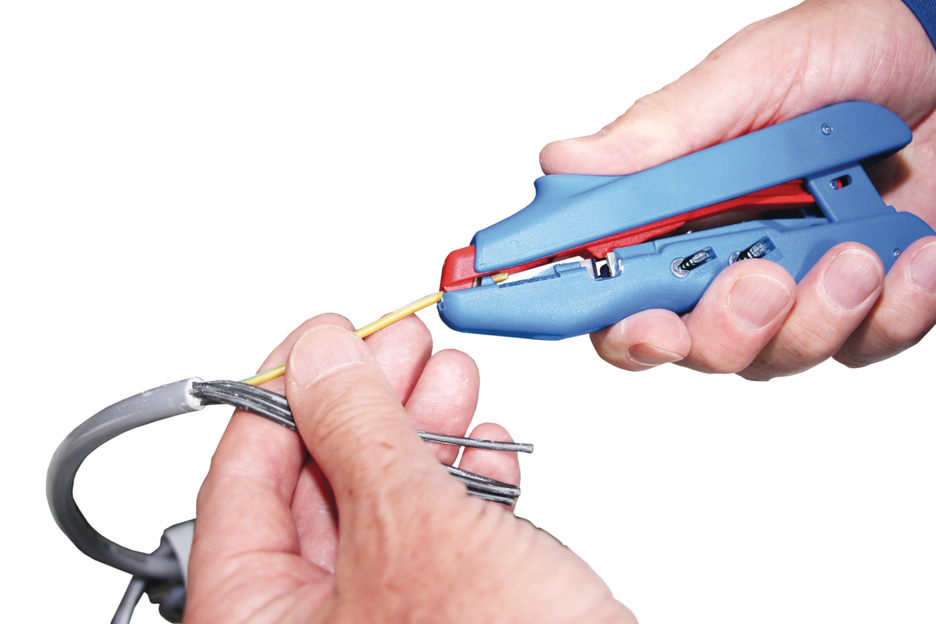

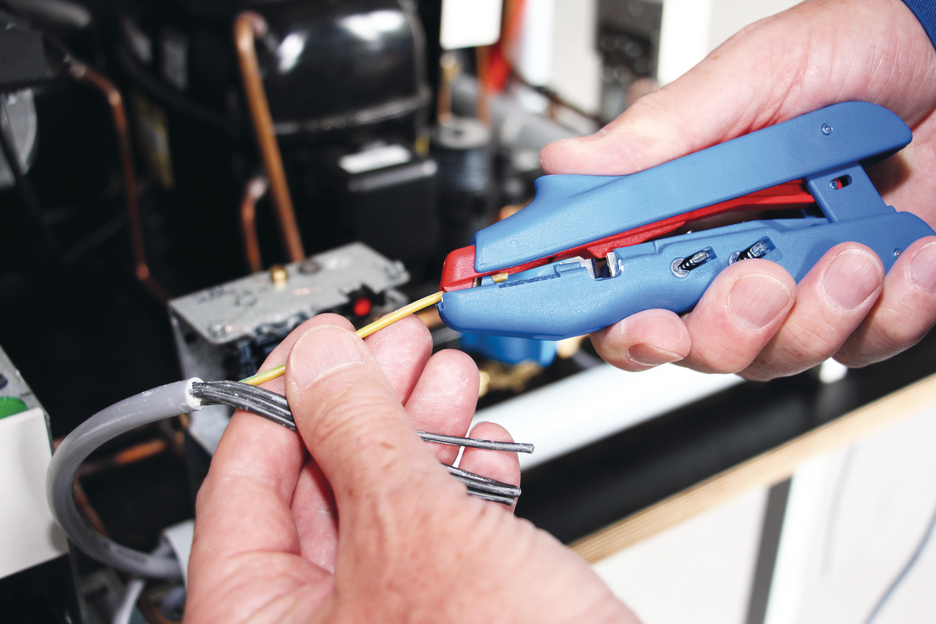

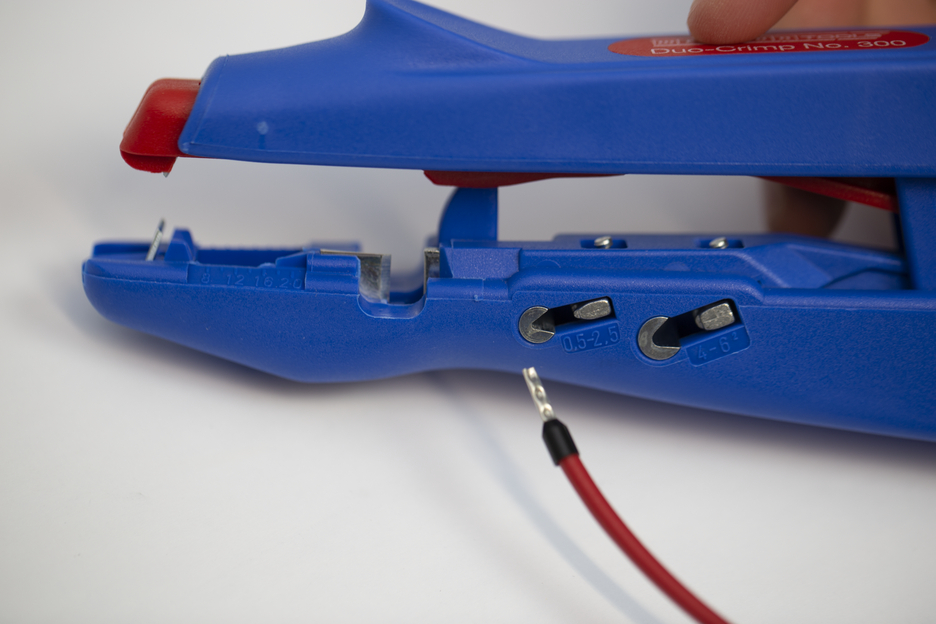

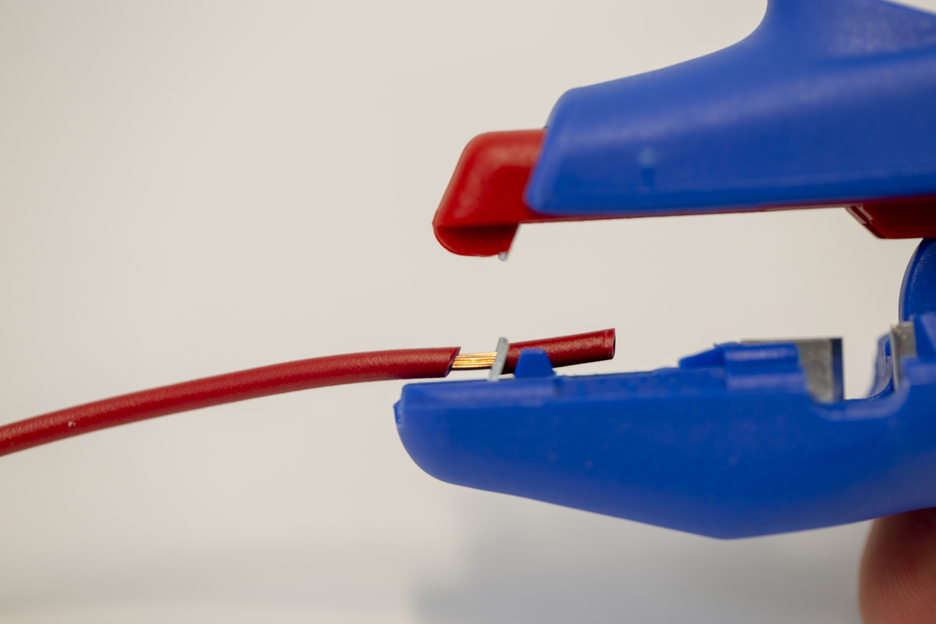

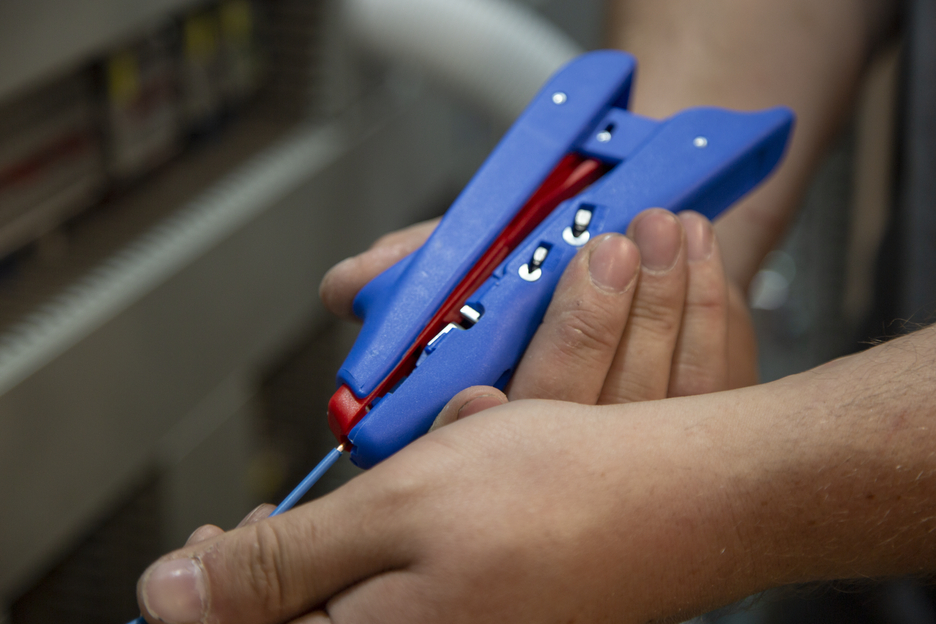

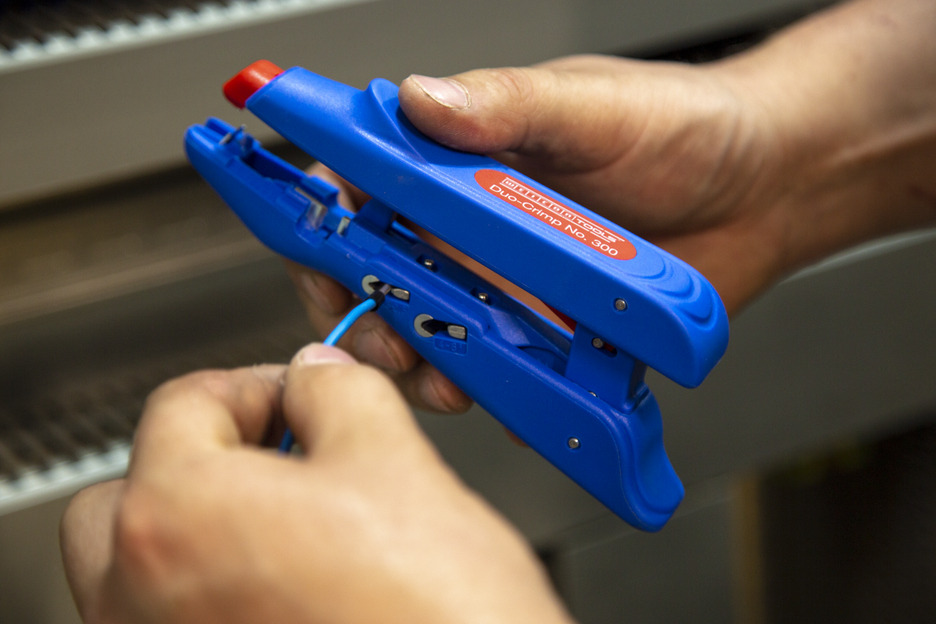

With the WEICON Duo-Crimp No. 300 can be used to strip conductors and crimp wire end ferrules. With the automatic scanning system no adjustment to the cable cross-section is necessary. The stripper has an optical length scale of 8 - 20 mm and is suitable for all common stranded and solid conductors from 0.5 mm² - 6.0 mm². The Duo-Crimp No. 300 insulates conductors to a length of 5 mm, preventing the individual conductors from splicing. Two crimping ranges are offered: 0.5 - 2.5 mm² and 4.0 - 6.0 mm². A well-accessible side cutter is integrated in the tool, which is suitable for cable cross-sectors up to 6 mm² (solid conductors up to 4 mm²).
Downloads
Information
- Tool
Login
Customers also bought
($5.03* / 100 ml)
($56.10* / 1 PCE)
($62.79* / 1 PCE)
Product safety
Attention:
Tool not to be used on live cables or conductors.
